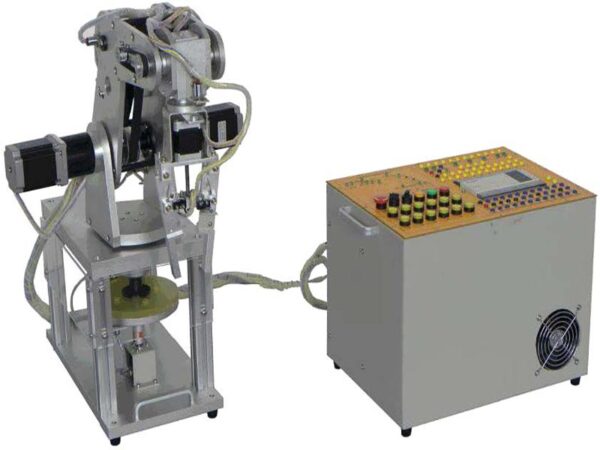

Electric 6-Axis Manipulator

Model No. DL ROBSIX

This  trainer  simulates  the  operation  of  an  industrial  robot,  such  as:
overall  rotation,  arm  rotation,  forearm  rotation,  wrist  rotation,  gripper  rotation,  gripper  opening/  closing.
It  integrates  different  technologies,  such  as  belt  drive  transmission  technology,  stepper  motor  driving,  position  detection,  PLC  and microprocessor technology.
The trainer can be controlled by MCU and PLC.

TRAINING OBJECTIVES:
This  model  is  mainly  used  for  teaching,  demonstration,  experiments,  practical  training,  curriculum design and scientific research.

It can train  the students to know the mechanical structure and  drive,  to  design  and  debug  both  hardware  and software of the electrical control system, to analyze  and  solve  the  problems  that  occur  in  the  actual  operation process.

The  electric  manipulator  is  a  typical  product  of  the electromechanical integration technology. Its design  and  application  has  a  very  important  meaning  in  mechatronics,  automation,  information  technology,  etc. microprocessor technology.
The  trainer  can  be  controlled  by  MCU and PLC.

TECHNICAL FEATURES
– Power supply: 220V±10%, 50Hz
– Angles/distance range:
-Manipulator rotation angle: 180°
– Upper arm rotation angle: 90°
– Forearm rotation angle: 90°
– Wrist rotation angle: 90°
– Gripper rotation angle: 180°
– Gripper opening and closing: 0-40 mm.
– Stepper motors and drivers.
– Panel with buttons and PLC interface.
– Microprocessor control board with USB interface.
– PLC program and Microprocessor program
