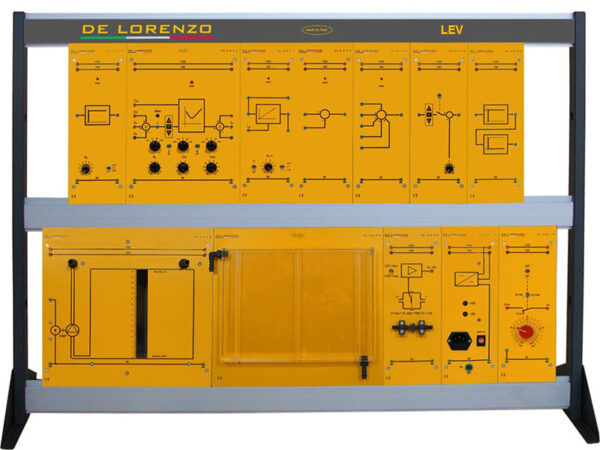

Level Control – LEV

Model No. LEV

This laboratory is designed for the study of the Level Control Application to allow the student practical training, based on the performance of guided experiments.
Industrial-type components are educationally adapted by using a modular panel system to permit the step by step assembling from the simplest circuit to the most complex system.
This trainer has a modular structure and it consists of didactic panels installed on a vertical frame.
It is supplied with a theoretical and practical manual.
The modularity of this didactic system can give the students a direct and immediate approach to the topics, offering the opportunity to study various subjects.

performing several experiments as following:
– Pump’s features
– Measurement system’s features
– Level process features
– Level control with adjuster P
– Level control with adjuster PI
– Level control with adjuster PID
– Level control with a 2 position controller

For more details download catalogue from here
