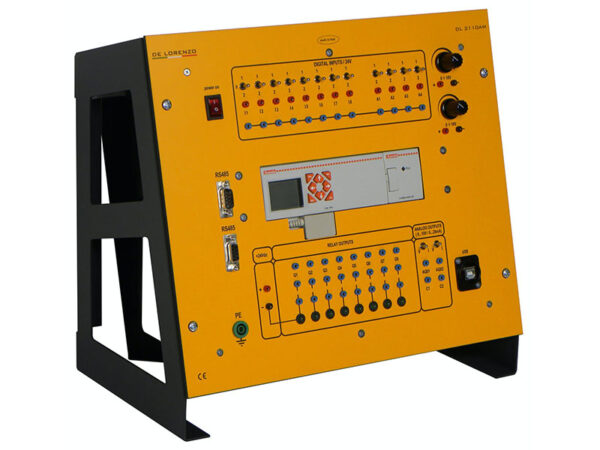

Programmable logic controller – 12 IN/10 OUT

Model No. DL 2110AM

The DL 2110AM is a programmable controller that combines high performance and ease of use for those who are entering the world of PLCs for the first time and can be configured both for the frame and for the bench.
It allows controlling machines and plants using the sequential logic that replaces traditional electromechanical panels, saving relays, timers and counters.
Flexibility, as it can be reprogrammed, the possibility of its use in environments with harsh working conditions, reliability and safety, as well as the ability to process both digital and analog signals, are its main advantages.
With this module, students can perform experiments commonly used in the industrial automation environment.
All sections (power supply, digital and analog I/O, and interfaces) are identified through clear blocks that show their types and symbols.

Technical features:
The DL 2110AM configuration includes the following components:
– 1 power supply, 24Vdc/1.5A
– 1 CPU (model Lovato LRD20RD024P1) with8 digital inputs, 4 digital/analog inputs(in voltage, 0÷10V) and8 relay outputs
– 1 expansion module (model Lovato LRE02AD024) with2 analog outputs in voltage(0÷10V) or current (0÷20mA) selectable through two switches
– 2 voltage variable outputs(0÷10V) adjustable through potentiometers
– 12 switches(3 positions each) for enabling the digital inputs
– 8 LED for the visualization of the output states
– 1 USB port forprogramming
– 2 RS485 ports with Modbus RTU protocol

For more details download catalogue from here
