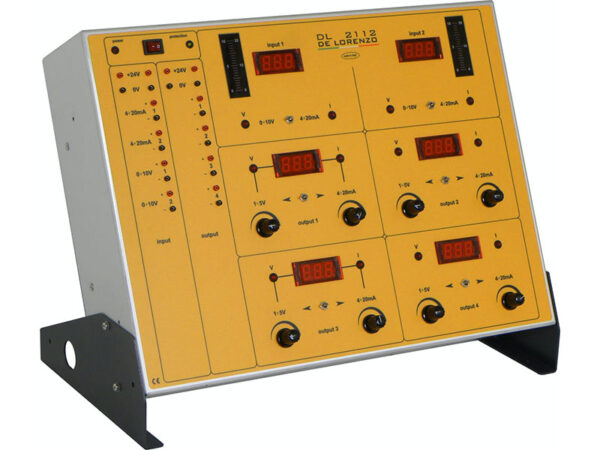

Analogue I/O Simulator

Model No. DL 2112

The simulator is essential and indispensable for operation and understanding of the analogue modules of the PLC.
The board includes 2+2 inputs, at 4-20 mA and 0-10 V respectively, and 4 outputs at 4-20 mA/0/1-5 V, smoothly variable through potentiometer; the current/voltage display is of digital type; the input indication is of bar type, through meters that can be switched. Moreover, 4 outputs at 24 Vdc/1A are available, internally powered.
The connection to the PLC can be carried out through terminals or connector.
Power supply: single-phase from mains.
Complete with educational manual and software.
NOTE:
It can be connected to a PLC such as the DL 2210B.

For more details download catalogue from here
