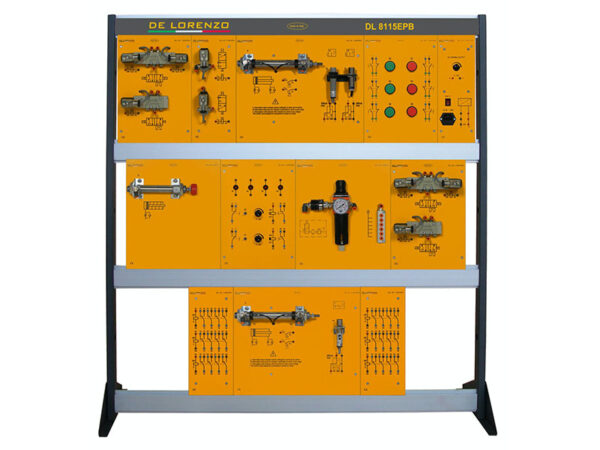

Electro-Pneumatics – Basic Modules

Model No. DL 8115EPB

This trainer is composed as follows:

BASIC MODULES
– Slide valve, filter-regulator with manometer and distributor
– Simple effect (SE) magnetic cylinder with retracted piston rod and flow micro-regulator
– 3/2 electro-pneumatic valves, 1 NC (YES) and 1 NO (NOT)
– 5/2 electro-pneumatic valves, bistable (1) and monostable with mechanical spring (1) with filters
– Double effect (DE) magnetic cylinder with flow micro regulators (2), reed sensors (2) and photo-electric sensor
– Double effect (DE) magnetic cylinder with flow micro regulators (2), reed sensors (2), inductive sensor and capacitive sensor
– Stabilized power supply module: 24Vdc, 2A
– Module with 6 push-buttons (with 1 NO contact, 1 NC contact each)
– Module with 3 relays (with 4 NO contacts, 4 NC contacts each)
– Module with 4 lamps, 2 timers (on-delay and offdelay) and two switches, 1 NO contact, 1 NC contact each
For more details download catalogue from here
