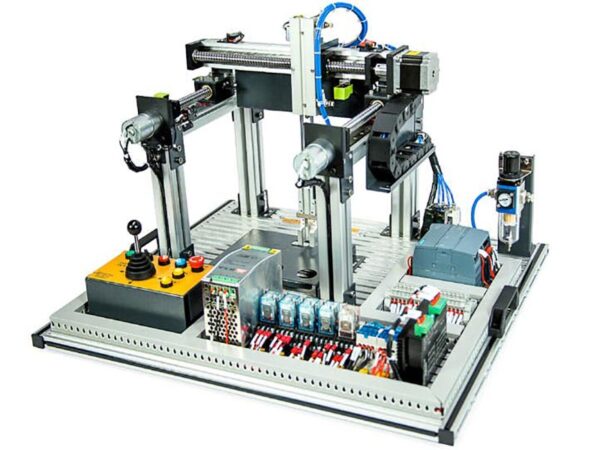

Two Axis Cartesian Robot

Model No. DL-ROB2X-ABDL / ROB2X-1200

The programmable multifunctional controller developed for simulating a Cartesian robot used in industrial environment.
This robot applies the modern mechanical technology, of pneumatics and sensors to allow the student to acquire notions in terms of mechanical design and tracking position technology.
By means of a modern PLC, it is possible to set the system, in this way the student has the opportunity to interact with the world of automation.

Technical specifications:
– The Cartesian robot is complete of the following components:
– A supporting frame made of aluminum for components and devices composing the system
– Control panel used to manage the system, is composed of different switches and a switch to variate the robot’s position
– Programmable PLC
– Two-axis mechanism complete with motors and sensors for tracking position
– Pneumatic clamp complete with all the components necessary for its operation
– Complete with processing software
– Compressed air system is needed for the correct operation of the system
– Power supply: 100÷240 VAC 50/60 Hz interacts with the world of automation.

Training objectives:
This equipment allows for carrying out the following experiments:
– Study of the two-axis mechanism with torque ball screws
– Study and operation of position sensors
– Knowledge of the operating principle of pneumatic components
– Introduction to the control system
– Control of the stepper motor

Order reference code:
It is possible to order this product with two different codes. The code’s choice is based on the PLC type to be included with the robot.
DL ROB2X-AB – Robot with PLC Alan Bradley
DL ROB2X-1200 – Robot with PLC Siemens
