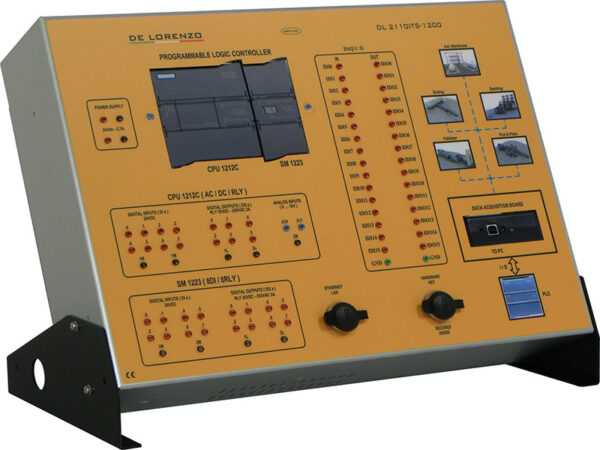

Interactive PLC Trainer

Model No. DL 2110ITS-1200

The DL 2110ITS-1200 is a training tool for PLC programming, that uses a PLC SIEMENS (SIMATIC S7-1200) and an interactive educational software for the simulation of industrial environments to be controlled.

HOW DOES IT WORK?
The DL 2110ITS-1200 offers five virtual industrial processes to learn how to program a PLC, with real situations of sorting, batching, palletizing, pick and place and automatic warehousing.
Each process reproduces the visual simulation of an industrial situation, including virtual sensors and actuators, so that the state of the system is “sensed” and controlled by the PLC: the objective is to program the PLC to control each of the five virtual processes as if they were real systems.
The information is exchanged between the PLC and the virtual system through a data acquisition board (DAQ) provided with 32 I/O isolated channels and USB interface.

MAIN FEATURES
– PLC Siemens of the SIMATIC S7-1200
– 3D realistic graphics
– Real-time physics that closely emulates what happens in real life
– 3D real-time sound
– Total interactivity with the systems
– Friendly user interface
– Easy and fast to setup

DESCRIPTION OF THE PROCESSES
SORTING: transport cases from the entry bay to the elevators, sorting them by height
BATCHING: mix three primary colors (red, green and blue) in order to obtain a desired color
PALLETIZER: palletize cases up to three layers
PICK & PLACE: place parts inside boxes through a three axes manipulator
AUTOMATIC WAREHOUSE: transport, store and retrieve boxes from a rack

FAULT SIMULATION
The DL 2110ITS allows you to simulate failures in sensors and actuators.
These failures can be in open circuit or short-circuit.
With this feature the user is able to induce malfunctions in the system, presenting new challenges and increasing the realism of the simulation.

INTERACTIVITY
– Interact with the system as you would in a real system
– Add and remove objects from the production circuit, at any time during the simulation
– Cause error situations or system jams
– Test individual parts of the system; for example test a conveyor table

For more details download catalogue from here
