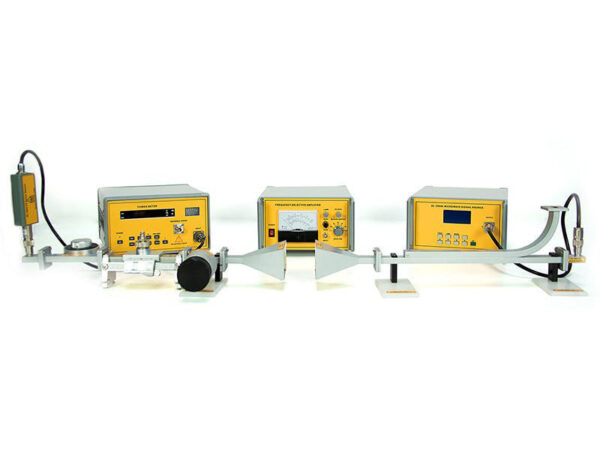

Microwaves Trainer

Model No. DL 2594N

MAIN FEATURES
– The trainer has been designed to start with a few related concepts providing in-depth coverage of the basic topics related to the propagation of microwaves through rectangular metal guides.
– As an open system, multiple components can be chosen to form a customized transmission system freely.
– The trainer includes a detailed didactic manual.

COMPONENTS INCLUDED:
The microwave trainer consists of a set of components, accessories and instruments.
It can be used as a laboratory test bench to experiment with the components of the microwave as well as to study the aspects of wave propagation.

THE TRAINER INCLUDES THE FOLLOWING:
– Power meter
– SWR METER
– Function Generator (with DDS PLL built in)
– Frequency Meter
– Variable Attenuator
– Slotted line
– Hybrid Tee
– Crystal Detector
– Waveguide
– Matched Termination
– Slide Screw Tuner
– Horn Antenna
– Coaxial Adapter
– Fixed Attenuator 6dB
– Directional Coupler
– Waveguide Stands 1 support
– Waveguide Stands 2 support
– Shorting plate
– N50KK cable
– BNC50JJ cable
– Screws and nuts
– Tools

For more details download catalogue from here
