Lift Model

Model No. DL 2122M

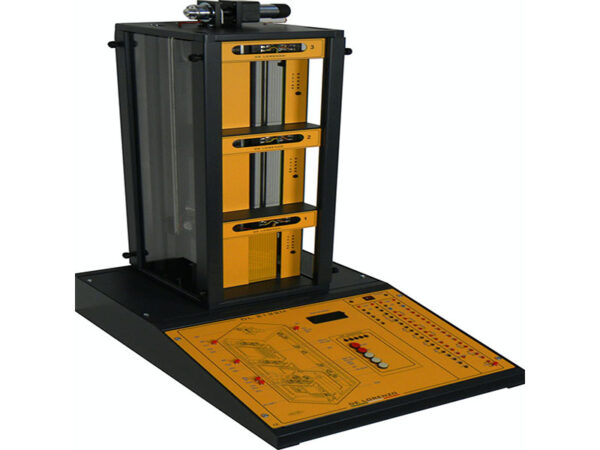

The model consists of a real three-stop scaled-down lift and allows an innovative approach to PLC control and management.

The Model Includes:
– lift car up-down and position visual signaling at each floor
– photocell on the lift car door to stop its closing in presence of an obstacle
– booking to be effected through buttons with flashing signaling, on a priority basis and independently from the lift car position
– lift car geared motor, hoist, and electromagnetic brake
– floor, safety and lift car deceleration limit switches
– lift car and floor door open-shut motors
– motor protection thermal relays simulated by buttons
– lift car deceleration, either up and down, near the stop floor
– reproduction of the inside lift car switch panel
– installation graph on the panel
– connection to PLC through terminals or connectors
– fault simulator through micro-switches Power supply: single-phase from mains.
– Complete with educational manual and control software.

NOTE:
It can be connected to a PLC such as the DL 2210B, although it is possible to use also a DL 2210A, but without booking visual signaling on the lift car switch panel.

For more details download catalogue from here
