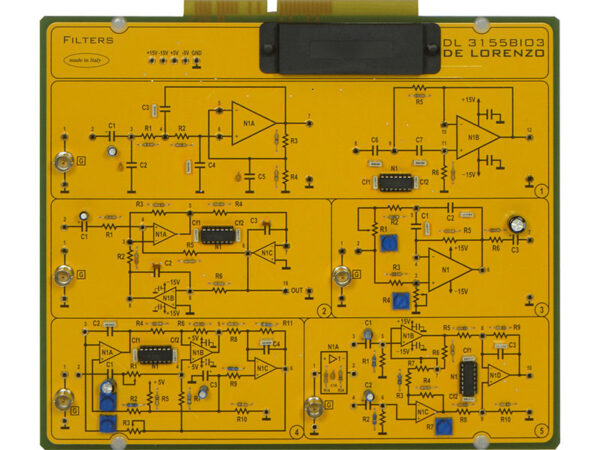

Filters

Model No. DL 3155BIO3

In This Course We Will Study The Devices That Allow The Passage Of Biomedical Signals With Given Characteristics, While Attenuating Those That Do Not Comply With The Required Parameters.
This Board Does Not Substitute The Medical Device Under Study.
The Results Of The Experiments Have No Medical Value. They Are Just For Demonstration Purposes.

Theoretical Topics:
– Filtering Of The Biomedical Signals
– Types And Characteristics Of The Filters
– Main Configurations Of The 1St And 2Nd Order Filters
– Active Lp, Hp And Khn Filters
– Filters Applications In The Biomedical Instrumentation
– Notch Filter
– Filters Used In The Measurement Of The Eeg And Of The Emg

Circuit Blocks:
– Low-Pass
– Band-Pass
– High-Pass
– Notch
– Band-Stop
