Model No. DL SMART–DCS

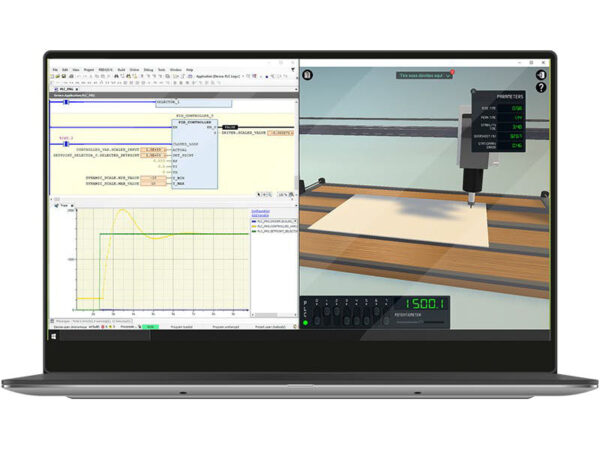

The Dl Smart-Dcs Is A Software That Has Been Developed To Teach Dynamic Control With Plc In A Unique And Effective Way.
With This Software, Students Can Improve Their Individual Experience On Studying Control Systems In Practice.
Professors Can Explore This Trainer To Provide Experiments To Students with the following topics:
1- Control systems: Introduction, examples, block digrams, open and close loop systems.
2- Control principles: Mathematical modeling of dynamic systems, linearity, transfer function, block diagrams,frequency response, stability, computational simulation.
3- Control approaches: Classic, optimal, fuzzy, other approaches.
4- ON-OFF and PID Control (P, PI, D, PID): Designing and tuning by analytic and experimental methods,and study of the P, D and I control actions.
5- Analysis of systems of first, second and third order in transitory and steady state.
This software works integrated to a softPLC (not included) which can be:
The Siemens PLCSIM or Codesys Control.
BUILT-IN PROJECTS, TASKS, INSTRUCTIONS, CONTENTS, AND AUTOMATIC VALIDATION
– Each project has well-defined goals and requirements.
– They are structured in tasks, and each task has specific requirements and provides instructions, contents and guidance to the students.
– When a student tests the developed solution and verifies that it meets the requirements, the student can deliver the task.
– When a student delivers a task, the SMARTSIM itself tests the student´s solution in real time and allows him/her to go to the next step.
For more details download catalogue from here
