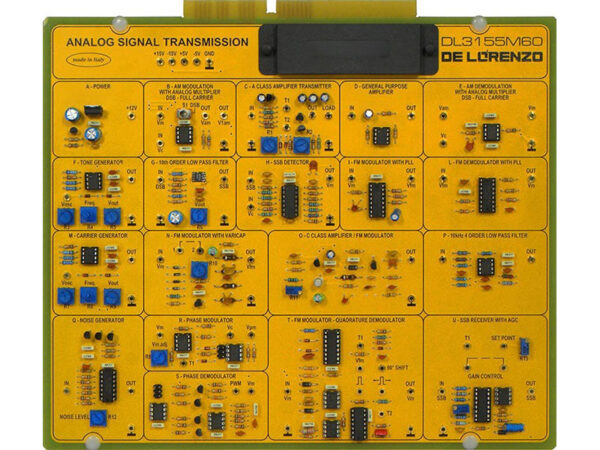

Analogue Signal Transmission

Model No. DL 3155M60

Theoretical Topics:
– Amplitude Modulation And Demodulation (Am)
– Double Side Band Modulation And Demodulation (Dsb)
– Single Side Band Modulation And Demodulation (Ssb)
– Frequency Modulation And Demodulation (Fm)
– Phase Modulation And Demodulation (Pm)
– Vco And Pll Circuits
– Carrier Generator
– Low Frequency Generator
– Noise Generator
– Fault Simulation

Technical Features:

-AM modulation and demodulation
-Carrier input 0 – 15 V peak-to-peak, 70 –700 kHz
-Modulator input 0 – 15 V peak-to-peak, 3.5 – 50 kHz
-DSB modulation and demodulation
-Carrier input 0 – 15 V peak-to-peak, 70 –700 kHz
-Modulator input 0 – 15 V peak-to-peak, 3.5 – 50 kHz
-SSB modulation and demodulation
-Selective filter
-Carrier input 0 – 15 V peak-to-peak, 300 -350 kHz
-Modulator input 0 – 2 V peak-to-peak, 30 – 50 kHz
-SSB demodulator with ACG
-FM modulation and demodulation
-Input 1 – 10 V peak-to-peak, 2-5 kHz
-Carrier 6-9 MHz
-Quadrature FM modulation and demodulation
-Input 1 – 10 V peak-to-peak, 3-5 kHz
-PM modulation and demodulation
-Input 1 – 5 V peak-to-peak, 0 – 300 Hz
-VCO and PLL circuits
-Input 0 – 4 V peak-to-peak, 0 – 6 kHz
-Carrier generator
-0 – 15 V peak-to-peak, 70 – 700 kHz
-Low-frequency generator
-0 – 15 V peak-to-peak, 3.5 – 50 kHz
-Noise generator
-Transmission with class C amplifier
-Gain of the receiver 15 dB
-Complete with theoretical and practical manual.

For more details download catalogue from here
