Trasparent Components Electro-Hydraulics

Model No. 53200943

DESCRIPTION
THIS TRAINER IS COMPOSED AS FOLLOWS:

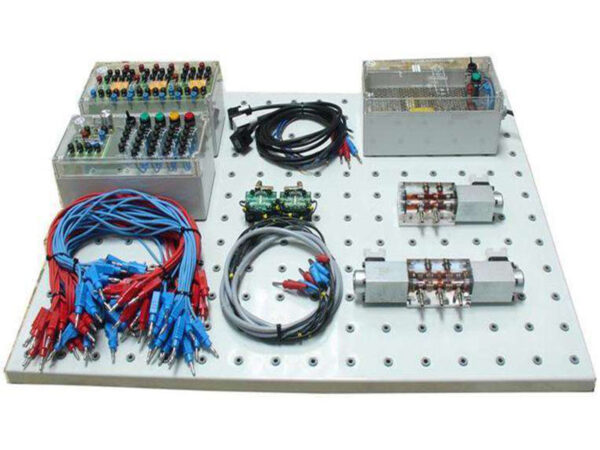

Work bench complete with:
– Metal working panel fully plastic coated;
– panel dimensions: 950 x 1050 mm. With 5 mm holes every 50mm (horizontally and vertically) for quick clamping of hydraulic components without using additional tools;
– 4 wheels (the 2 front wheels are lockable);
– 3 drawers with locking systems with key for storing components;
– 1 clipboard located on the side of the work bench.

Movable hydraulic power unit.
This electrically powered hydraulic unit consists of:
– 6 liters transparent tank;
– 0.12Kw single-phase motor;
– extra-silent gear pump, Q= 0.5 l/min;
– pressure relief valve, P max: 10 bar;
– pressure gauge: 0-16 bar Stop-Start switch;
– quick fit couplings (1P –2T);
– 3m power cable with a plug;
– tap for inserting bubbles into the circulating oil circuit;
– oil can (5 liters) with special red coloring.

Transparent components:
– Double effect cylinder: d/e cylinder  20 x  10 x 58mm.
– Manually actuated 4/2 distributor: manually actuated, spring return
– Pressure relief valve: ball valve. Direct control.
– 3 connection divider with pressure gauge: 0-10 bar pressure gauge. One female + two males’ quick fit connectors.
– Check valve: seat check valve.
– Flow restrictor: needle flow restrictor, manual regulation.
– 6 connection divider: 6 male quick-fit self-sealing connectors, size NW4oSet of hoses: 6 NW3 x 520 mm length, 4 NW3 x 350 mm length. With quick-fit self-sealing female connectors.
– Workbook with theory and practices

For more details download catalogue from here
