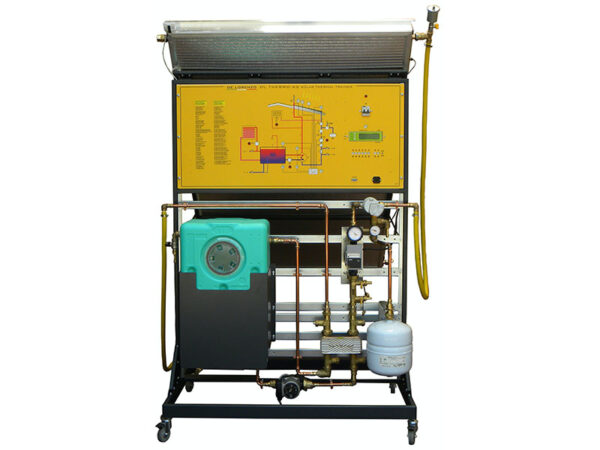

Solar Thermal Energy Trainer

Model No. DL THERMO-A3

Didactic system for the theoretical and practical study of solar power facilities used to obtain hot water for sanitation and similar services.
It is a forced circulation system with a wide range of didactic applications. It incorporates six temperature probes available at different points, and a solar irradiation sensor that is used to calculate energy.

TRAINING OBJECTIVES
– Identification and familiarization of the components
– Interpretation of the technical parameters of all components.
– Functioning of the collector and the heating circuits and how they operate.
– Observation and analysis of the collector efficiency
– Local control of the processor
– Definition of the net power
– Study of the relationship between flow and net power
– Determining the correlation between the temperature variation (collector/environment) and the collector efficiency
– Heating and checking of the convector heater
– Assembly and maintenance criteria for facilities.
– Interpretation of situational data supplied by the control

THE TRAINER IS COMPOSED OF:
1- Main Unit And Control Panel
2- Hot Water Circuit And Solar Thermal Station
3- Solar Thermal Collector

For more details download catalogue from here
