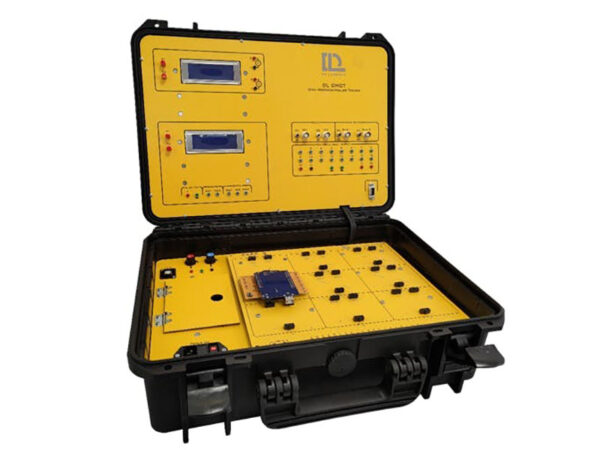

Model No. DL OMCT
Flexible and modular system for the study of electronics, circuit theory and microcontroller programming.
The use of sub-boards from our BRS (Boards Reconfigurable System) product line allows performing simple but detailed practical experiments in the field of basic circuit theory, electronics, digital circuits, and microcontrollers.
The modularity of the base allows the students to create, develop and validate their own experiments and ideas and to create their own prototypes quickly and safely by using the opensource microcontroller Arduino.
The system is compatible with Windows devices, and it can be connected to a tablet or PC through the USB port.
TRAINING OBJECTIVES
The trainer provides all the tools necessary for the fast prototyping of applications using basic electronic circuits and the opensource microcontroller Arduino. The training objectives will depend on the type of applications developed by the student.
The trainer can be provided with an optional set of BRS boards from the De Lorenzo product line
To perform introductory experiments on:
– Analogue electronics
– Digital electronics
– Microcontrollers
– Photovoltaic solar energy
TECHNICAL FEATURES
• Power supply:
– ± 5 Vdc, ± 15 Vdc, 1 A /
– 0 ÷ + 15 V
– 0 ÷ – 15 V
• Arduino UNO with ATmega328 microcontroller and IDE programming interface.
• Digital and analogue I/O interface with virtual instrumentation compatible with NI Labview:
– Dual channel oscilloscope: 1MHz bandwidth (1?s sampling rate).
– Function generator: Sine, square and triangular waveforms with a max. frequency of 125kHz.
– Digital pattern generator and logic analyzer to study digital circuits.
• Multifunctional DC instrument
– direct current voltages (range + – 50 V)
– direct current currents (range + – 2 A)
– direct current powers (range 100 W)
For more details download catalogue from here
