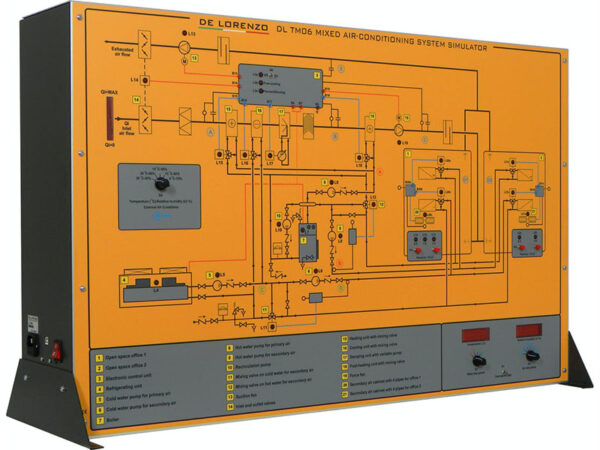

Mixed Air-Conditioning System

Model No. DL TM06

The simulator allows the study, the performing of experiments and the troubleshooting for the following system:
– Mixed air-water conditioning system, with four-duct air convectors
– This system is reproduced on the panel, through a color representation that allows a complete analysis of the fluid circuit, of its components and of the electrical/electronic circuit for control and regulation.

TECHNICAL DESCRIPTION
The mixed air-water conditioning system, with four-duct air connectors, is composed of the following main elements:
– Air treatment unit (ATU) complete with heating, cooling, humidifying and post-heating batteries.
– Air duct, with delivery fan, ejection fan, motorized shutter for treated air ejection and treated air renewal.
– Boiler and refrigerating unit for the production of the hot and of the cool fluid to be used in the ATU batteries and in the four-duct air convectors.
– Electronic station for data recording concerning temperature and humidity and for the subsequent adjustment and opening of the actuators and air conditioning devices.
– Environment to be air-conditioned composed of offices, provided with four-duct air convectors, system for air delivery and for its recovery.
– Possibility to simulate the external temperature and humidity conditions.
– Possibility to simulate the crowding of the offices and consequently, the relevant thermal and sensitive loads.
– Possibility to display the percentages of the renewed air.
– Possibility to display the temperature and the humidity of the treated air, in various points of the system.
– Possibility to display the temperatures of the hot and cool fluid supplying the batteries.
