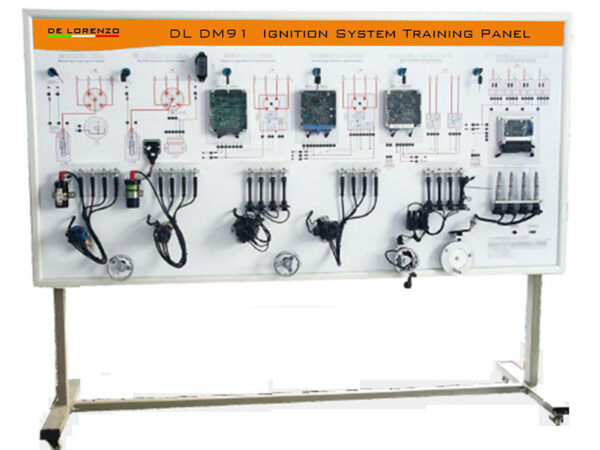

Ignition System Training Panel

Model No. DL DM91

LEARNING EXPERIENCE
This demonstration panel represents the structure and operation of the engine ignition system based on real components of six ignition systems, including the mechanically timed ignition system, hall effect electronic ignition system, magnetic trigger electronic ignition system,optical trigger electronic ignition system, distributorless ignition system, (Each ignition coil services two spark plug),distributorless ignition system (Coil-On-Plug).
The device applies to theoretical teaching and maintenance training of the ignition system for secondary vocational skill schools.

MAIN CHARACTERISTICS
The didactic system shows 6 real-life and operable ignition systems.
These are used to illustrate the structure and operating process of the ignition system.

Such system includes:
– mechanically timed ignition system,
– hall effect electronic ignition system,
– magnetic trigger electronic ignition system,
– optical trigger electronic ignition system,
– distributorless ignition system (Each ignition coil services two spark plugs),
– distributorless ignition system(Coil-On-Plug

GENERAL CHARACTERISTICS
– Dim. mm (HxLxW) : 1900x2400x700
– Weight approx. kg 200
– Input power supply: AC 220V ± 10% 50Hz
– Operating voltage: 12V DC
– Operating functioning temperature: -40 to +50).
