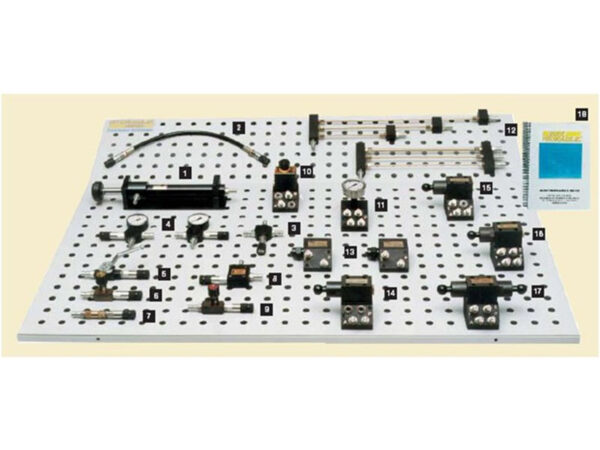

Hydraulic Level 1

Model No. 53952015

– 2 Pressure relief valve 2 …125 bar. On base plate
– 1 One way flow restrictor .
– 1 Shut off ball valve.
– 1 Two way flow restrictor
– 2 T distributor with pressure gauge 0…100 bar, glycerine damped.
– 1 Cross distributor, 4 connections.
– 1 Pressure compensated one way flow regulator. On base plate.
– 1 4 Connections distributor on manifold with pressure gauge 0 .. 100 bar. Glycerine damped.
– 1 One way restrictor (non-return valve).
– 1 Double acting differential cylinder 32 / 22, 200 mm
– 1 Piloted one way restrictor.
– 1 2/2 manual acting valve, spring return. Onto base plate.
– 1 3/2 manual acting valve, spring return. Onto base plate.
– 1 4/2 manual acting valve, spring return. Onto base plate
– 1 4/3 manual acting valve, spring centered. P-T connected at centered position Onto base plate.
– 1 Set of tubes for testing pressure drops. One item with three different diameters and the same length, another item with three different lengths and the same diameter.
– 1 Set of 12 hoses with quick female connectors. 8 hose NW 6×500 mm length and 4 hoses NW 6×1000 mm length.
– 1 Workbook with theory and practices

Every valve size will be NW6 – Cetop 3.
Every hydraulic connection will use anti-leakage quick-fit ecologic connectors
Every component will be suitable for working on panels with 17 mm holes every 50mm (horizontally and vertically).

For more details download catalogue from here
