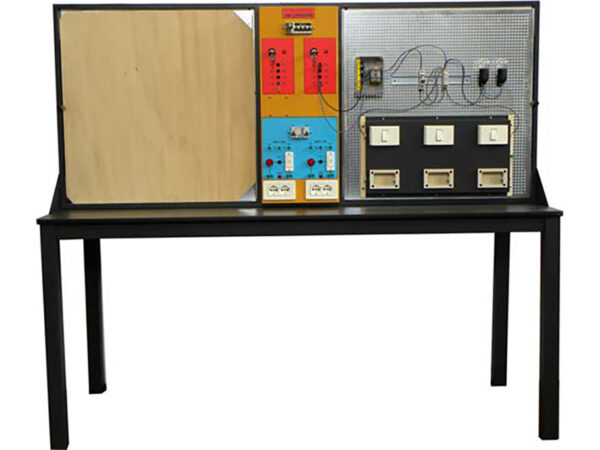

Four Place Work Bench With 4 Independent Supplies

Model No. DL 1103

For each side the following power supplies are provided:
– 2 three-phase + N + T, 16A outputs on 36A safety terminals according to IEC 61010-1; protection through differential, magneto thermal, 4-pole, 16A automatic switch, pilot lamp, and key switch for teacher control.
– 4 outputs on 10/16 A single-phase mains sockets, protection through the differential, magneto-thermal,16A automatic switch and pilot lamp.
– 2 outputs isolated from the mains, 0-12-24Vac, 4 A on isolated terminals, protection through magneto-thermal, automatic switch.
– 2 optical and acoustic circuit testers on isolated terminals, protection through fuses.
– Dimensions: 200x80x175 cm.
– Height from ground to work surface: 90 cm.

For more details download catalogue from here
