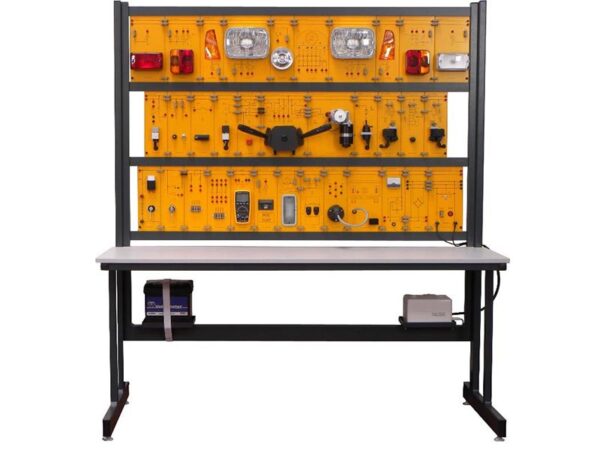

Car Lighting System Trainer

Model No. DL DM20

LEARNING EXPERIENCE
The trainer allows for studying and testing the parameters of the vehicle lighting system subassemblies.

It allows learning the marks and graphic symbols of the electrical installation elements according to and testing the resistance, the voltage, and the power in the vehicle installation system.

MAIN CHARACTERISTICS
This demonstration trainer includes the following systems:
-Direction indicators, hazard lights
-Passing lights, driving lights, and parking lights
-Fog lights
-Brake and reversing lights
-Headlight lift regulator
-Vehicle interior lighting
-Wiper equipment
-Vehicle horn sound
-Window wash system
The experimental stand allows also to demonstrate the reaction of a system to the most frequently observed types of failures, such as interruptions in output circuits or in output circuits, short circuits to positive or ground.

GENERAL CHARACTERISTICS
-Dim. mm approx (HxLxW) : 1700x1000x500
-Weight approx. kg 150
-Input power supply: AC 220V±10% 50/60 Hz
-Operating voltages: 2x12V -15A
-Working temperature: -40 ~ +50.
