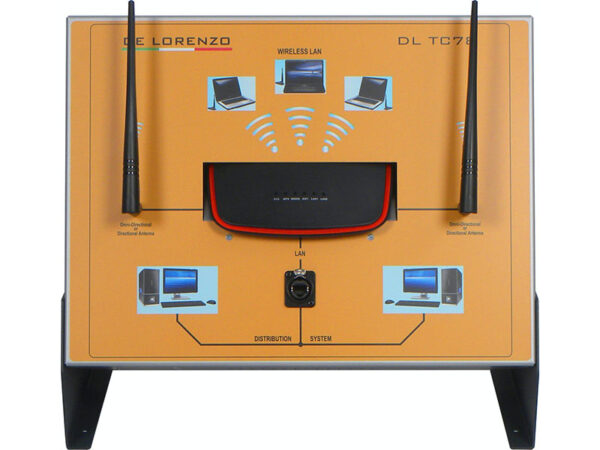

Wireless Lan (WLAN)

Model No. DL TC78

Objectives
Training of an installation and maintenance technician for wireless local networks, able to:
– know the principles, the standards, and the devices normally used in WLAN,
– install and configure wireless networks,
– perform the maintenance, the troubleshooting, and the tests on WLAN.

Educational Path
The Educational Path of the Training Package covers the following subjects:
– Introduction to the wireless local networks
– Structure of the MAC level (Media Access Control)
– Structure of the PHY level (Physical layer)
– The devices for the WLAN
– WLAN, exercises

Composed of:
– DL TC78AP: Wireless LAN Access Point Compatible IEEE 802.11g/b 2.4 GHz
– Data transmission speed: up to 54 Mbps
– External antenna (with connector RPSMA)
– Transmission power: 16 dBm (typical)
– Connector LAN: 10/100 Mbps RJ45
– External power supply
– DL TC78WA: Wireless LAN USB Adapter (Quantity two)
– Compatible IEEE 802.11g/b 2.4 GHz
– Data transmission speed: up to 54 Mbps
– Internal antenna
– Interface USB 2.0
– Power supply from USB
– DL TC78-SW: Software with theory, questions, exercises, and support programs
– Based on Web technology
– Theoretical lessons with questions
– Practical exercises with questions
– Support programs for testing and performing exercises
