Wireless Dynamics System

Model No. 1500PK

Bluetooth | USB | Huge Battery Life | Independent Logging

The all-new Data Harvest Smart Wireless Dynamics System provides an ideal way of investigating all types of mechanics work for GCSE & A-level studies enabling you to achieve accurate and repeatable results.

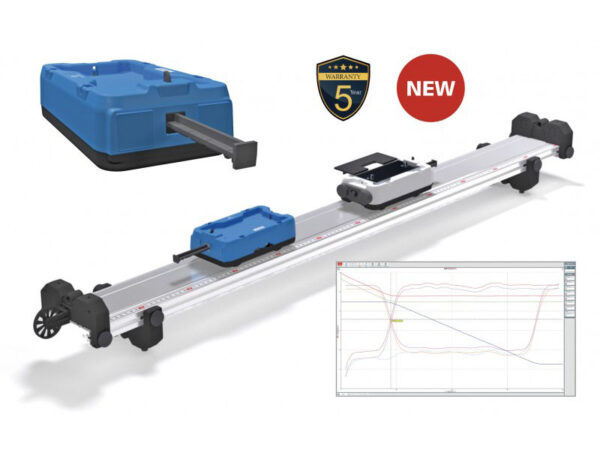

The New Dynamics Track
The new wider dynamics track is 1.2 meters in length and constructed from extruded aluminum providing a flat smooth base for the low friction carts to operate on. The track also features an integral precision ruler for accurate results.
A retort stand can be attached to convert the track to an inclined plane.

The Wireless Smart Carts
The new wireless smart carts are Bluetooth enabled with a built-in, spring-loaded, 3-stop plunger to provide a graded set of constant force.
You can also load the carts with the supplied stackable masses or attach magnets.

Cart Features:
– Force sensor +/- 100N
– 3 Axis Accelerometer +/- 2000dps
– Optical Encoder on the wheel to 0.1mm
– 3 position plunger

Track & Cart Accessories
– The Dynamics System is supplied with 2 end stops that house two magnets and connections to attach & line feed the included Spoked Pulley accessory.
– The pack also includes 2 height and slide adjustable feet, and an interrupt card.

For more details download catalogue from here
