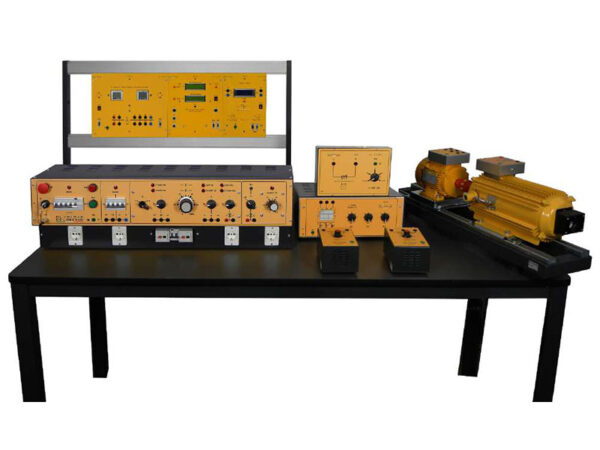

Manual Test Bench For Electric Machines 1.1 KW

Model No. DL MAC-U

The Dl Mac-U Is A Multipurpose Bench For The Study And Characterization Of All The Electric Machines In The De Lorenzo Unilab Series (1,1 Kw) Catalogue. The System Includes All The Instruments Necessary To Learn The Operation And Characteristics Of Each Type Of Electric Machine (Motors Or Generators In Ac Or Dc).
The Laboratory Has Been Designed As A Modern And Practice-Oriented Training System For Vocational And Engineering Education.
It Provides A Comprehensive Solution To Cover A Standard Electric Machines Course That Can Be Tailored To The Institute’S Educational Needs.
The Test Bench Is Modular And Can Be Reconfigured According To The Machine Under Test Using, As Needed,The Power Supply, The Electrical And Mechanical Instruments And The Electromagnetic Brake For The Characterization Of The Motors Or The Prime Mover (Dc Machine) For The Study Of Generators.

EXPERIMENTS
With the basic configuration of the test bench, the available instruments and brake can be used to trace the characteristic curves of the compound excitation DC motor DL 1023 that is used as s prime mover and perform the following experiments:
– Measurement of the windings resistance
– No-load losses
– Conventional efficiency
– Direct test with electromagnetic brake
– Electro-mechanic characteristic

The total list of experiments available will vary according to the machines under test.
Please refer to the electric machines section for a detailed list of the available machines.

For more details download catalogue from here
