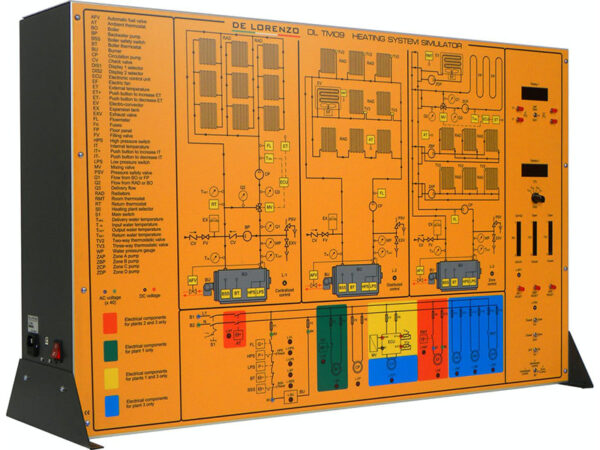

Heating Systems

Model No. DL TM09

The simulator allows the study, the performing of experiments and the troubleshooting for the following systems:
– Central heating system
– Heating system with distributed regulation
– Zone heating system

These systems are reproduced on the panel, through a colour representation which allows a complete analysis of the fluid circuit, of its components and of the electrical/electronic circuit for control and regulation.

TECHNICAL DESCRIPTION

The central heating system is composed of the following main elements:
– Liquid or gas heat generator
– Forced circulation circuit, two pipes, with closed expansion tank and inverse return
– Electronic central regulation of the delivery temperature, on the basis of the external temperature, trough three? way mixing valve
– Recirculation anti condensate pump
– Boiler regulation thermostat and block thermostat
– Block pressure switch and safety valve
– Fuel interception valve

The heating system with distributed regulation is composed of the following main elements:
– Gas heat generator
– Forced circulation circuit, single pipe, with closed expansion tank and inverse return
– Regulation distributed on each user
– Two way thermostatic valve
– Three way thermostatic valves
– ON/OFF thermostats
– Boiler regulation thermostat and block thermostat
– Block pressure switch and safety valve
– Fuel interception valve

For more details download catalogue from here
