Digital Signal Transmission

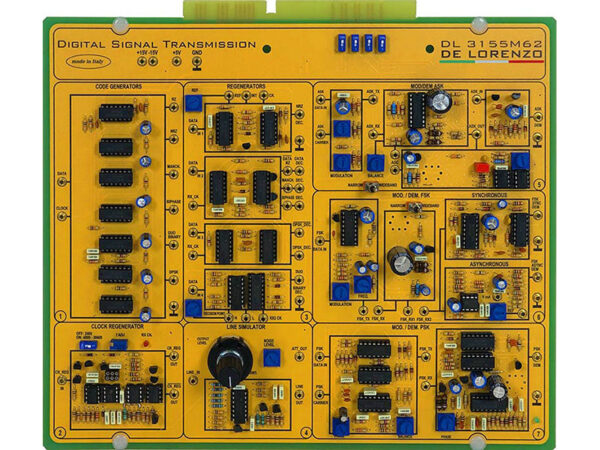

Model No. DL 3155M62

The design and construction of electronic circuits to solve practical problems is an essential technique in the fields of electronic engineering and computer engineering.
With this board the students can study the operating principle of the transmission of digital signals using the most common
modulations such as ASK, FSK and PSK with the aid of encoders/decoders NRZ, RZ, Manchester, Bi-phase and Duo-binary.

THEORETICAL TOPICS
– The transmission of digital signals
– The base band transmission analysed through the study of NRZ, RZ, Manchester, Biphase, DPSK and duo-binary coders and decoders
– The numerical modulators and demodulators to realize, verify and test the ASK, the FSK, the PSK modulation

CIRCUIT BLOCKS
– NRZ (Non Return to Zero) coding and decoding
– RZ (Return to Zero) coding and decoding
– Manchester coding and decoding
– Bi-phase coding and decoding
– Duo-binary coding and decoding
– ASK modulation and demodulation
– FSK modulation and demodulation
– PSK modulation and demodulation
– Complete with theoretical and practical manual.
