AC Circuits

Model No. DL 3155M07

The design and construction of electronic circuits to solve practical problems is an essential technique in the fields of electronic engineering and computer engineering.

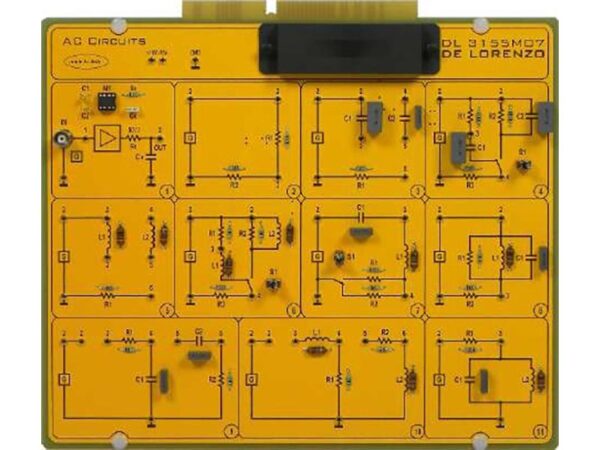

With this board the students can study the operating principle of the alternating current circuits with the use of inductors, resistors and capacitors. They also begin to understand the function of filters and resonant circuits.

THEORETICAL TOPICS
– Sinusoidal alternating currents and voltages
– Vector and symbolic representation of the sinusoidal electric quantities
– Product of a sinusoidal quantity by a constant
– Sum and difference of sinusoidal quantities
– Product of two sinusoidal quantities
– Product of a sinusoidal quantity by a complex number
– Elementary bipoles: R, L, C
– Series and parallel of the bipoles: R-L, R-C, R-L-C
– Oscillating circuits: frequency response of the ac circuits
– Low-pass filter, high-pass filter, pass-band filter
– Fault simulation

CIRCUIT BLOCKS
– Alternating quantities
– Resistive circuit
– Capacitive circuit
– R-C circuit (series and parallel)
– Inductive circuit
– R-L circuit (series and parallel)
– Series resonant circuit Parallel resonant circuit
– Low-pass filter (R-C)
– High-pass filter (C-R)
– Low-pass filter (L-R)
– High-pass filter (R-L)
– Pass-band filter
– Complete with theoretical and practical manual.
