Windmill Test-Bench

Model No. EN 04.1

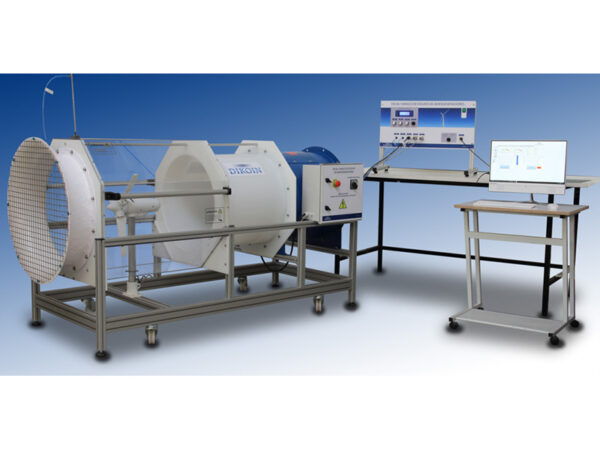

The Windmill Test-bench (EN 04.1), is a wind tunnel of 2 meters in length designed to work with windmills of less or equal to 630mm in diameter.

The equipment has a 612 mm windmill included, which has a torque and rotation speed measurement system.

The wind tunnel has a transparent part, so a complete sight of the windmill working is allowed.

That part can also be opened, to facilitate access and manipulation of the system.

The tunnel has a built-in system for the measurement of the speed of the air by means of electronic pressure transducers, to monitor in real-time the speed of the air that the windmill is put under.

The new system also has electronic control of the pitch, to be modified from the control panel or from the computer.

All the system is monitored and controlled through a control module, which also can be connected to a computer with a USB port.

For more details download catalogue from here
