Model No. DL 2155RTI

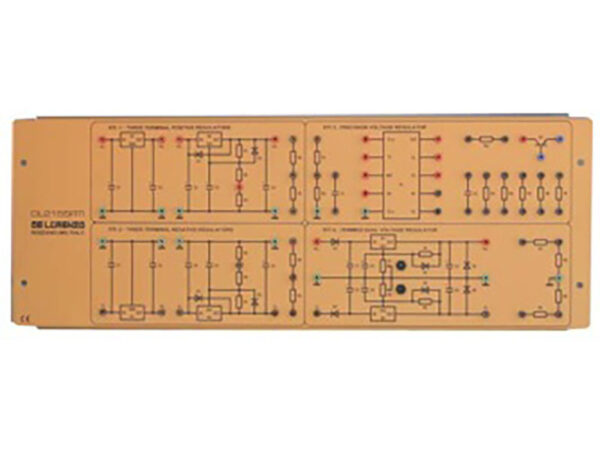

The Board Is Designed To Study The Regulators, In Particular The Voltage Regulators, With Integrated Circuits.
The Board Is Arranged Into Several Modules That Allow The Study Of Three Terminals Positive And Negative Voltage Regulators With Either Fixed Or Adjustable Output Voltage.
Then, A Dual Voltage Regulator And A General Purpose Regulator Integrated Circuit Are Analyzed.
The Board Is Supplied Complete With A Set Of Stackable, Plug-In Cables Of Suitable Lengths And Colours And With A Training Manual.
Power Supply: ± 15 Vdc, 750 Ma
Experiments:
– Analysis And Functional Checking Of A Three Terminals Positive/Negative Voltage Regulator With Fixed Output
– Adjustment Of Output Voltage In Three Terminals Regulators
– Analysis And Functional Checking Of A Dual Voltage Regulator With Separately Adjustable Voltages
– Measurements Of Input And Output Characteristics Of
– Analysis And Operating Modalities Of A General Purpose Monolithic Regulator
