Transmission Line

Model No. DL 3155E64

Theoretical Topics:
– Familiarization With The Transmission Line Theory
– The Four Terminal Model Of The Transmission Line (Equivalent Circuit Model)
– Input Impedance Of Lossless Transmission Line
– Special Cases Of A Transmission Line (Half-Wave And Quarter-Wave Lengths, Matched, Shorted, And Open Load)
– Stepped Transmission Line
– Practical Types Of Transmission Lines (Coaxial, Microstrip, Stripline, Balanced, Single Wire, Waveguide, And Optical Fiber)
– Measuring The Characteristics Of A Transmission Line
– Measuring The Attenuation Of A Transmission Line
– Frequency Characteristics Of A Transmission Line
– Stationary Waves
– Fault Simulation

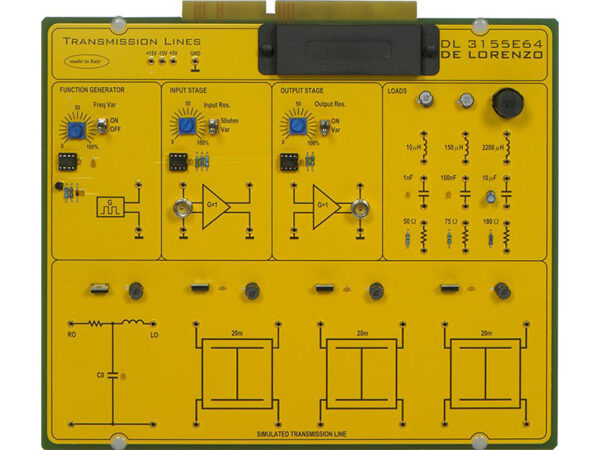

Circuit Blocks:
– Function Generator
– Input And Output Stages
– Rlc Simulated Transmission Line Of 100M (4*25M)
– R Loads
– L Loads
– C Loads
