Transistors

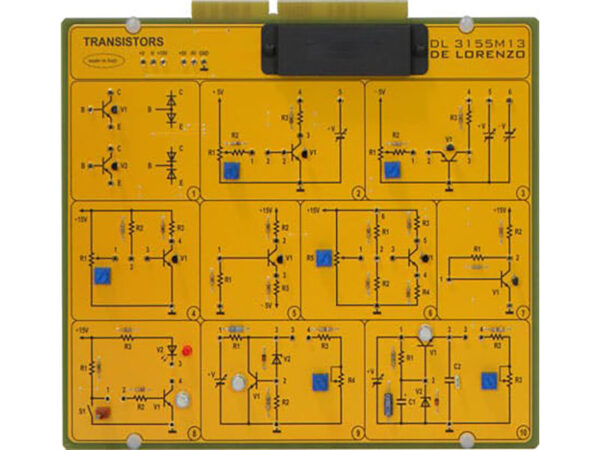

Model No. DL 3155M13

Theoretical Topics:
– The Transistor Currents
– Input And Output Characteristics
– Collector Feedback Polarization
– Voltage Divider Polarization
– Emitter Polarization
– The Transistor As A Switch
– The Transistor As A Regulator
– Reading And Use Of Technical
– Specifications Taken From The Catalogues
– Fault Simulation

Circuit Blocks:
– Verification Of The Integrity Of The Junctions Of A Bjt Transistor
– Recording Of The Input And Output Characteristics Of A Bjt Transistor In The Common Emitter Configuration
– Recording Of The Output Characteristics Of A Bjt Transistor In The Common Base Configuration
– The Base Polarization Of A Bjt Transistor
– The Emitter Polarization Of A Bjt Transistor
– The Polarization Of A Bjt Transistor With Voltage Divider
– The Polarization Of The Collector Feedback Bjt Transistor
– Operation Of A Bjt Transistor As A Switch
– Voltage Regulator With Parallel Transistor
– Voltage Regulator With Series Transistor

For more details download catalogue from here
