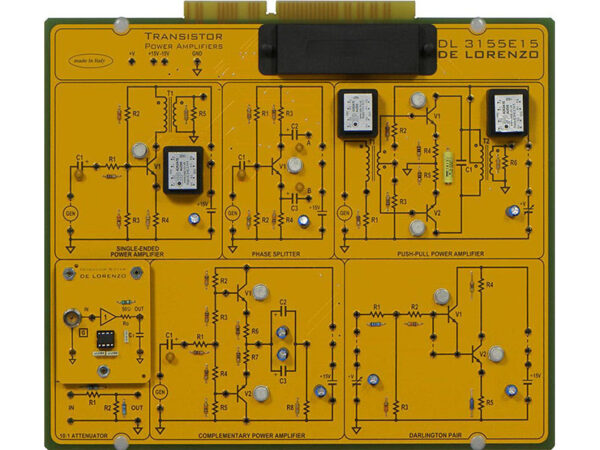

Model No. DL 3155E15
Theoretical Topics:
– Bjt Power Amplifiers
– Classification Of The Output Stages
– Harmonic Distortion
– Heat Dissipation
– Amplifiers In Class A
– Amplifier With Load Flown By Direct Current
– Amplifier With Output Transformer (Single Ended Power Amplifier)
– Phase Splitter
– Amplifiers In Class B
– Push Pull Amplifiers
– Transformer Amplifiers In Class B
– Output Stage In Class B (Complementary Power Amplifiers)
– Single Ended Amplifiers In Class B
– Darlington Configuration Amplifiers
– Fault Simulation
Circuit Blocks:
– Single Ended Power Amplifier
– Phase Splitter
– Push Pull Power Amplifier
– Attenuator
– Complementary Power Amplifier
– Darlington Pair
For more details download catalogue from here
