Model No. DL 2155MVB

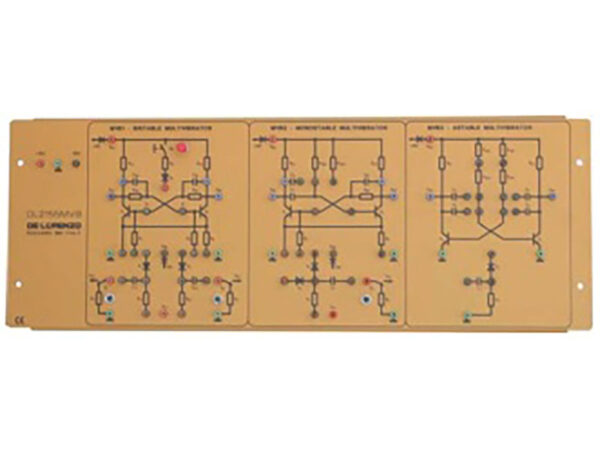

The Board Is Designed To Study And Experimentally Check The Most Popular Configurations Of Transistor-based Multivibrating Circuits.
The Board Is Divided Into Three Main Sections.
The First Section Deals With Bistable Multivibrators In Fixed Bias And Self?Biased Configurations.
The Various Set, Reset And Trigger Controls Are Analyzed.
The Second Section Affords The Study Of Monostable Multivibrators With Fixed Bias And Self Bias And The Relevant Controls.
The Third Section Is Dedicated To The Astable Multivibrators.
The Board Is Supplied Complete With A Set Of Stackable,Plug?In Cables Of Suitable Lengths And Colours And With A Training Manual.
Power Supply: ± 15 Vdc, 100 Ma
Experiments:
– Analysis Of The Bistable Multivibrator With Fixed And Self
– Check Of Set, Reset And Trigger Controls Operation
– Analysis Of The Monostable Multivibrator With Fixed And Self Bias
– Check Of The Trigger Control
– Analysis Of The Astable Multivibrator
