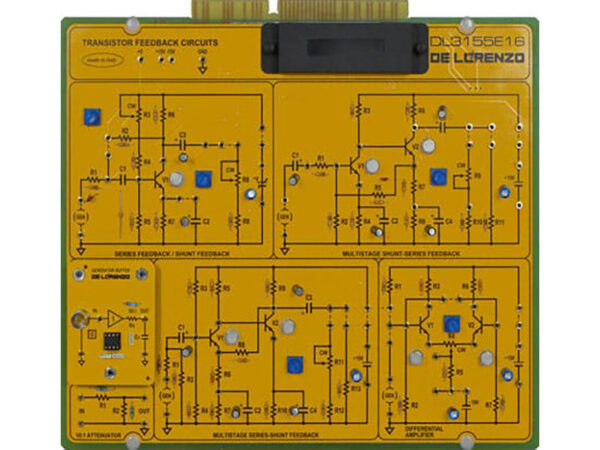

Transistor Feedback Circuits

Model No. DL 3155E16

Theoretical Topics:
– Typical Quantities And Basic Configurations Of A Feedback Amplifier
– Feedback Of A Multistage Amplifier
– The Effects Of Series Feedback On Ac Gain And On Input And Output Impedance
– The Effects Of Negative Series Feedback On Bandwidth
– The Effects Of Shunt Feedback On Ac Gain And On Input And Output Impedance
– Multistage Shunt-Series And Series-Shunt Feedback
– The Shunt-Series Multistage Amplifier Current Gain And Output Impedance
– Series-Shunt Multistage Amplifier Voltage Gain And Output-Impedance
– Differential Amplifier Operation
– Single-Ended And Differential
– Gain Characteristic
– Common Mode Gain And
– Rejection Ratio
– Fault Simulation

Circuit Blocks:
– Series Feedback / Shunt Feedback
– Multistage Shunt-Series Feedback
– Attenuator
– Multistage Series-Shunt Feedback
– Differential Amp

For more details download catalogue from here
