Transistor Based Voltage Regulators

Model No. DL 2155RTD

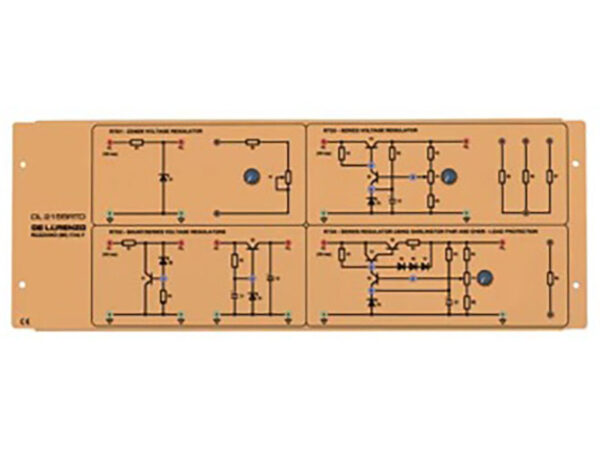

The Board Analyzes The Components Normally Used In Cascade To Transformer And Filter To Realize Stabilized Power Supply Units With Bipolar Technology.
For All Configurations The Input And Output Characteristics Can Be Measured.

The Board Is Arranged In 4 Modules That Allow The Study Of:
– Zener Voltage Regulator
– Zener Voltage Regulator With Series And Parallel Transistor
– Voltage Regulator With Variable Output
– Voltage Regulator With Short?Circuit Protection And Darlington Transistor The Board Is Supplied Complete With A Set Of Stackable,Plug In Cables Of Suitable Lengths And Colours And With A Training Manual.
– Power Supply: + 15 Vdc, 750 Ma

Experiments:
– Study Of Voltage Regulators With Fixed Or Adjustable Output Voltage
– Study Of Different Regulators With Increasing Performances
– Measurement Of The Typical Regulator Parameters: Input And Output Characteristics, Output Resistance,Ripple
