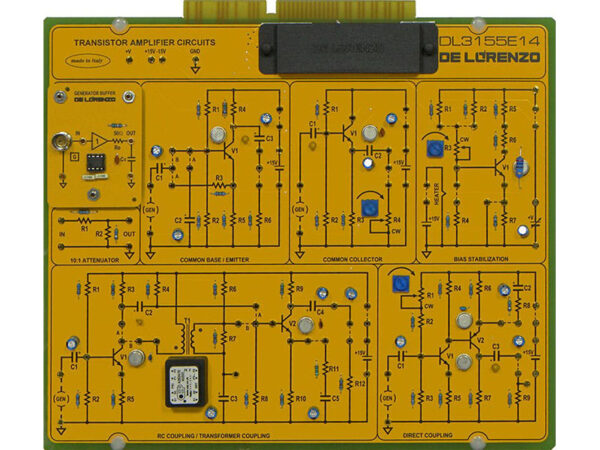

Transistor Amplifier Circuits

Model No. DL 3155E14

Theoretical Topics:
– Idea Of Linear Amplification Of Current, Voltage And Power
– Common Base Configuration: Circuit And Behaviour
– Common Emitter Configuration: Circuit And Behaviour
– Common Collector Configuration (Emitter Follower): Circuit And Behaviour
– Circuits For The Control Of Alternate Current Motors
– Thermal And Bias Stabilization Of A Linear Amplifier
– Static And Dynamic Load Lines
– Multi-Stage Amplifiers
– Rc Coupled Amplifiers
– Transformer Coupled Amplifiers
– Direct-Coupled Amplifiers
– Fault Simulation

Circuit Blocks:
– Attenuator
– Common Base / Emitter
– Common Collector
– Bias Stabilization
– Rc Coupling / Transformer Coupling
– Direct Coupling

For more details download catalogue from here
