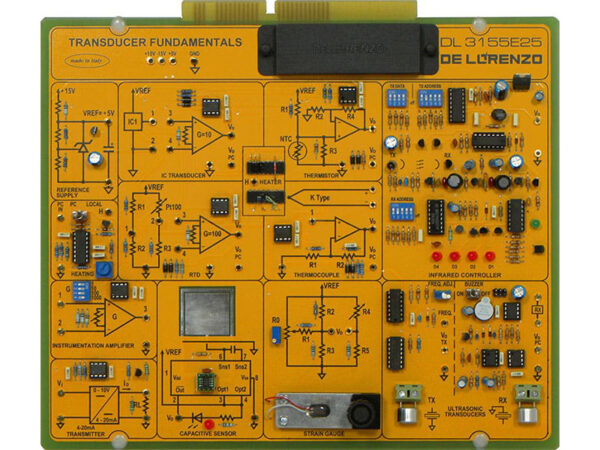

Transducer Fundamentals

Model No. DL 3155E25

Theoretical Topics:
– Measurement Of Temperature Through An Ic Transducer
– Measurement Of Temperature Through A Current Output Ic Transducer
– Measurement Of Temperature Through A Thermocouple
– Measurement Of Temperature Through An NTC Thermistor
– Measurement Of Temperature Through An Rtd
– Familiarization With Capacitive Sensors
– Measurement Of The Deformation Through An Instrumentation Amplifier
– Familiarization With Infrared Controllers And Protocols (Tx/Rx)
– Familiarization With Ultrasonic Sensors And Transducers (Tx/Rx)
– Fault Simulation

Circuit Blocks:
– Reference Voltage Supply
– Heating Section (With Internal Or External Command)
– Instrumentation Amplifier
– Current Transmitter (4÷20 Ma)
– Ic Transducer
– Thermistor (NTC)
– Resistance Temperature Detector (RTD)
– Thermocouple
– Capacitive Sensor
– Strain Gauge
– Infrared Controller
– Ultrasonic Transducers

For more details download catalogue from here
