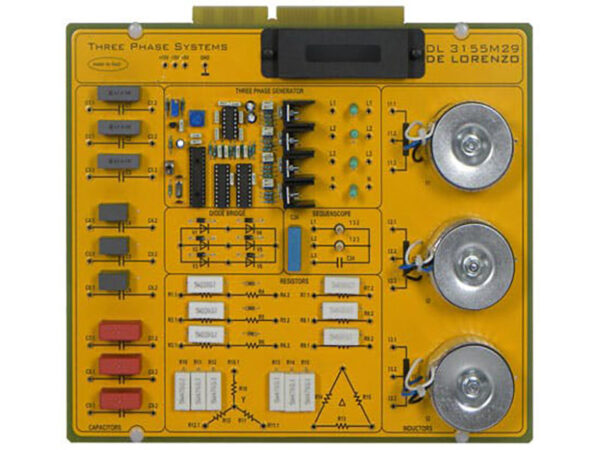

Three-Phase Systems

Model No. DL 3155M29

Theoretical Topics:
– Star Connected Three Phase Load
– Triangle Connected Threephase Load
– Balanced Three Phase Load
– Unbalanced Three Phase Load
– Inductive Load
– Capacitive Load
– RePhasing Circuit
– Resonance Circuit
– Displacement Of The Centre Of The Star
– Half Wave Rectifier Circuit
– Full Wave Rectifier Circuit
– Half Bridge Three Phase Rectifier Circuit
– Six Phase Rectifier Circuit
– Fault Simulation

Circuit Blocks:
– 4 Three Phase Resistive Circuits
– 3 Three Phase Capacitive Circuits
– 2 Three Phase Inductive Circuits
– 1 Diode Rectifier Circuit
– 1 Sequence Scope Circuit
– 1 Three Phase And Neutral
– Generator With Variable Frequency Between 10 And 500 Hz

For more details download catalogue from here
