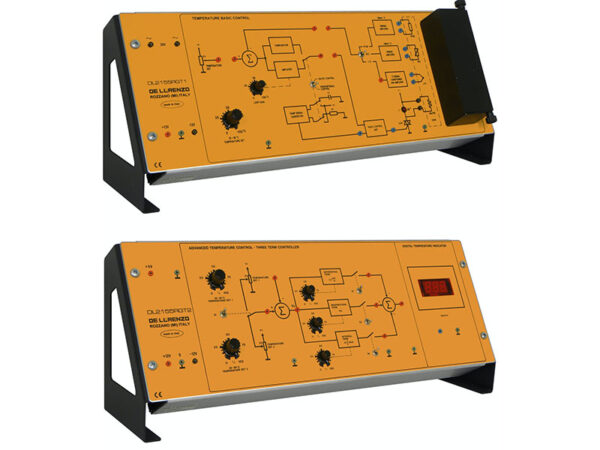

Temperature Basic Control

Model No. DL 2155RGT1

This Board Includes A Small Oven With A Heating Element And Three Temperature Sensors (Thermocouple, Thermistor, And Thermo-Resistance) With Relevant Interface Circuits.
Complete With Error Amplifier That Can Be Confi Guard For On/Off Or Proportional Control, And With A Piloting Circuit Of The Power Stage With Triac.
The Board Is Supplied Complete With A Set Of Stackable, Plug-In Cables Of Suitable Lengths And Colours And With A Training Manual.
Power Supply: 24Vac, 1A, 50/60Hz And ± 15Vdc, 100Ma

Experiments:
– V = F(T°) Characteristics Of A Thermocouple, With Relevant Linearization, Of The Thermistor And Of The Thermoresistance
– Analysis Of The Operation Of An On/Off Control
– Analysis Of The Operation Of A Proportional Control

For more details download catalogue from here
