Step Motor Control

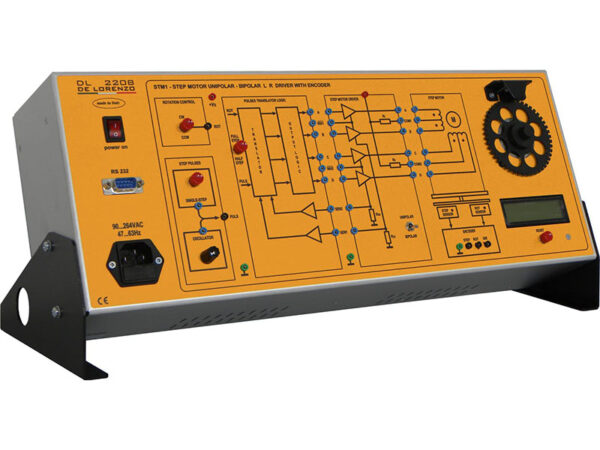

Model No. DL 2208

This Board Is Designed To Provide A Valid Support For The Study Of The Operation And Of The Application Criteria Of These Important Electromechanical Components.
It Allows The Students Performing Study And Experimentation Concerning The Driving Of A Step Motor,Unipolar Or Bipolar.
The Rotation Can Be Performed With Increments Of A Single Step Or With Continuity, At A Variable Speed.
Position And Direction Are Indicated By A Disk.
An Lcd Display Allows Showing The Number Of Steps, The Number Of Turns, The Rpm, The Rotation Direction And The Selected Parameters Of The Controller.

Technical Features:
– Step Angle: 1.8°
– Number Of Phases: 4
– Max. Power: 16 W
– Sense Of Rotation: Reversible
– Current/Phase Max: 1.5 A
– Variable Frequency From 20 Hz To 500 Hz Through Potentiometer
– Power Supply: 90/260 Vac, 50/60 Hz

Experiments:
– Analysis Of The Operation Of A Step Motor
– Analysis Of The Control Criteria And Of The Power Modules
– Full Step Or Half Step
– Variable Speed Rotation Control
– Inversion Of The Rotation Direction
– Study Of An Incremental Position Encoder
