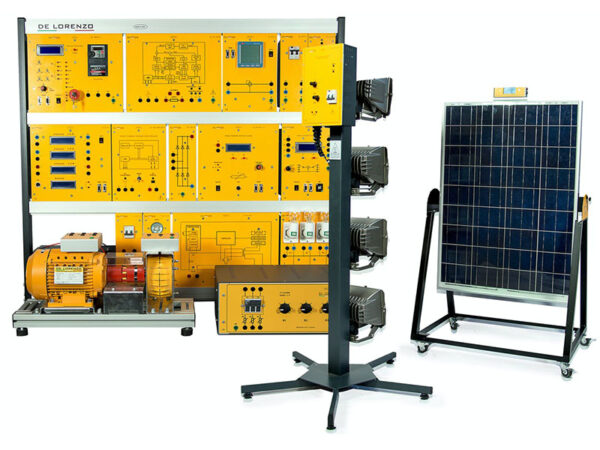

Solar/Wind Energy Advanced Trainer

Model No. DL SUNWIND-AT

Modular trainer for the theoretical and practical study of the electrical installations with photovoltaic solar energy and wind energy.

With the solar/wind advanced trainer it is possible to perform experiments to determine the characteristics of a wind generator and a photovoltaic panel, study their off-grid operation with a battery charge regulator and their on-grid operation with the connection to the mains network. The complete system is supplied with a sunlight simulation module for indoor use.

TRAINING OBJECTIVES
Study of wind turbine:
– Identification of wind turbine components
– Operating the Wind Turbine Breaker
– Calculating wind power
– Measuring Wind turbine electrical power
– Study of wind turbine with load.

Study of off-grid wind system:
– Dimensioning of an off-grid wind system.
– Battery regulating and charging
– Supplying DC load with wind power stored in a battery
– Supplying AC load with wind power and a battery.
– Calculating the system autonomy with different loads

Study of on-grid wind system:
– Measuring the electricity produced by the wind generator, delivered/taken from the mains grid, and the loading of AC lamps.
– Calculating the efficiency of the complete on-grid wind energy system.
– Investigating the response of a wind system to a mains failure
– Energy balance.
– Measuring solar radiation: Changing the inclination and azimuth of the solar panel
– Investigating the PV module response to shadow formation

Recording the characteristics of the solar modules:
– Solar Panel Voltage-Irradiation Curve, Solar Panel Current-Irradiation Curve (calculating the inner resistance of the solar panel), Obtaining the solar panel current-voltage curve, Obtaining the solar panel current-power curve, Measurement of the voltage and current of the photovoltaic module with overload
– Off-grid system: Measuring the generated power of a PV system and battery charging
– Off-grid system: Using Solar Panel and Battery to supply a DC Load
– Off-grid system: Design and testing of a standalone PV system in direct storage operation and 230V AC On grid system: Measuring the electricity delivered to the mains grid
– On grid system: Measuring the electricity produced by the solar panel, delivered/taken from the mains grid, and the loading of AC lamps
– On grid system: Determining the efficiency of the grid-connected inverter
– On grid system: Investigating the response of a PV system to a mains failure
