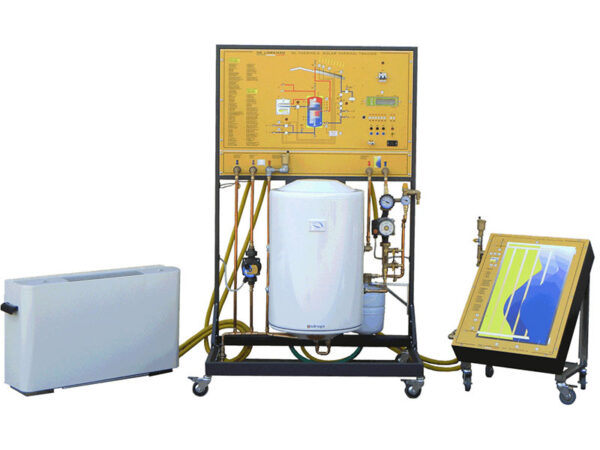

Solar Thermal Energy Trainer With Simulated Panel

Model No. DL THERMO-A1

Didactic system for the theoretical and practical study of solar power facilities used to obtain hot water for sanitation, air conditioning and similar services.
It is a forced circulation system with a wide range of didactic applications. It incorporates six temperature probes available at four
different points, and a solar irradiation sensor that is used to calculate energy.
Complete with connecting cables, experiment manual and software for data acquisition from the solar controller and processing.

TRAINING OBJECTIVES
– Identification of all components and how they are associated with its operation.
– Interpretation of the technical parameters of all components.
– Local control of the processor
– Heating and check of the convector heater
– Forcing the reserve energy
– Forcing the recirculation pump
– Sizing criteria for ACS facilities, air conditioning, etc.
– Assembly and maintenance criteria for facilities.
– Interpretation of situational data supplied by the control.

THE TRAINER IS COMPOSED OF:
1- Main Module
2- Solar Panel
3- Convector Heater
