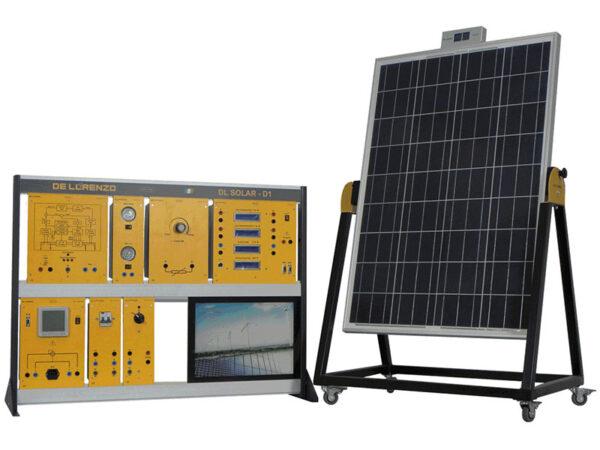

Model No. DL SOLAR-D1
Didactic system for the study of the generation of electric energy from photovoltaic panels and its inlet in the mains network.
Complete with connecting cables, experiment manual and software for data acquisition and processing.
TRAINING OBJECTIVES
– Measuring the mains voltage
– Measuring the load current, voltage, power and energy
– Setting the solar panel to the most irradiated position
– Changing the inclination of the solar panel
– Changing the azimuth of the solar panel
– Covering the solar panel with different materials
– Obtaining the solar irradiation data
– Obtaining the solar panel voltage-irradiation curve
– Calculating the inner resistance of the solar panel
– Obtaining the solar panel current-voltage curve
– Measuring the electricity delivered to the mains grid
– Measuring the electricity produced by the solar panel and delivered/taken from the mains grid
– Measuring the electricity produced by the solar panel, delivered/ taken from the mains grid, and the loading of lamps
For more details download catalogue from here
