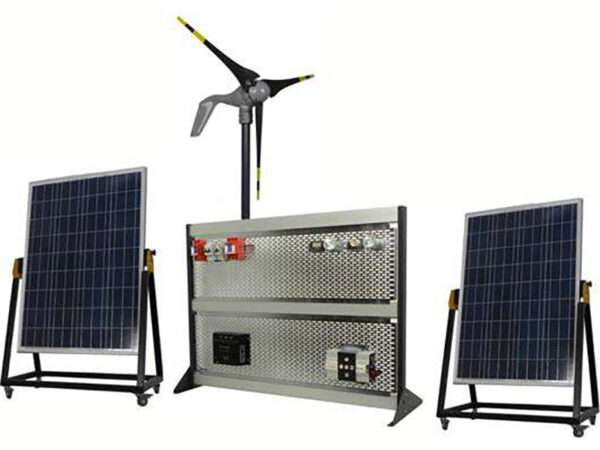

Solar And Wind Energy Installation Kit

Model No. DL SOLAR-WIND KIT

Photovoltaic solar energy and wind energy kit for the generation of electrical energy.

TRAINING OBJECTIVES
– To investigate how the solar irradiation influences the solar panel output voltage
– To calculate the inner resistance of the solar panels
– To obtain a daily irradiation curve
– To cover the solar panel with different materials
– To investigate how the wind speed influences the wind turbine output voltage
– To test the braking mode of the wind turbine
– To charge the battery using solar energy
– To charge the battery using wind energy
– To use both solar power and energy stored in the battery to power the DC load
– To test the complete system

TECHNICAL SPECIFICATIONS
– Two photovoltaic inclinable panels, 90W, 12V.
– A supporting frame for the panel.
– An electronic current regulation module, with LCD screen, output 12 V, 30 A.
– A wind turbine, 160W, 12V
– An inverter, with output at mains voltage, 12 V, 30 A, 300 W.
– A battery control switch, 0-600 V, 32A with battery, 100 Ah.
– Two mains voltage lamps, dichroic 35W and LED 3W, with independent switches.
– Two 12V lamps, dichroic 20 W and LED 3W, with independent switches.
– Cables, connectors and accessories.
– A frame for supporting the electrical components of the system: lamps, switches, protections, etc.
