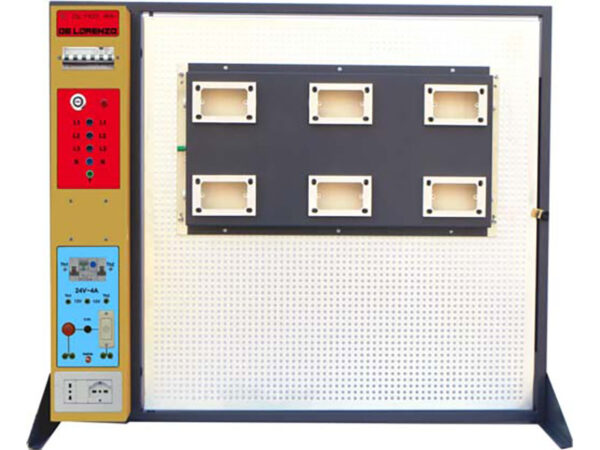

Single Place Bench-Top Work Frame

Model No. DL 1107

Simplified version to be placed and fixed on a table already available in the laboratory.
Very flexible and with limited dimensions, it offers a viable solution when the space is small.
Its characteristics are identical to the other versions, but it cannot be provided with drawers, chests of drawers, cabinets and socket holders.

It provides the following power supplies:
– 1 three-phase + N + T, 16A output on 36A safety terminals according to IEC 61010-1; protection through the differential, magneto thermal, 4 poles, 16A automatic switch, pilot lamp, and key switch for teacher control.
– 2 outputs on 10/16 A single-phase mains sockets, protection through the differential, magneto-thermal, 16A automatic switch, and pilot lamp.
– 1 output isolated from the mains, 0-12-24Vac, 4 A on isolated terminals, protection through magneto thermal, automatic switch.
– 1 optical and acoustic circuit tester on isolated terminals, protection through fuses.
– Dimensions: 100x55x85 cm

For more details download catalogue from here
