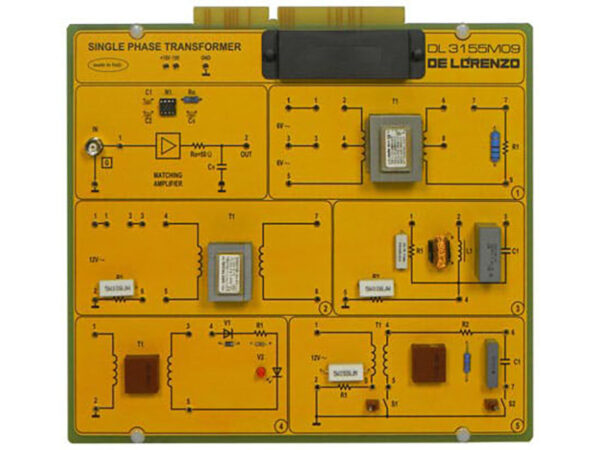

Single-Phase Transformer

Model No. DL 3155M09

Theoretical Topics:
– Ideal Transformer: No Load Operation
– Ideal Transformer: Load Operation
– Real Transformer: No Load
– And Load Operation
– Tests On The Transformer
– The Autotransformer
– Magnetic Core
– Electric Windings
– Transformer Cooling
– Transformer Applications
– Pulse Transformers
– Transformers For Blocked
– Oscillators
– Analysis Of The Behaviour Of Voltage Vs. Time
– Fault Simulation

Circuit Blocks:
– Voltage And Current Transformation Ratio
– No Load Transformer
– Transformer In Different Load
– Conditions; Phase Displacement
– Pulse Transformer
– Hysteresis Cycle Of A Pulse Transformer;
– Magnetic Saturation Curve
