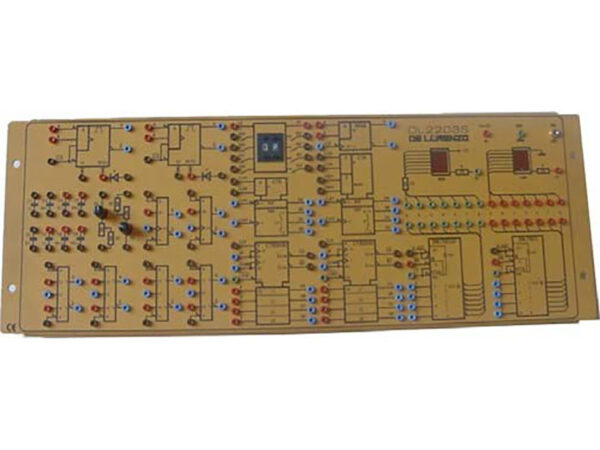

Sequential Logic

Model No. DL 2203S

This Board Allows The Study Of The Following Subjects:
Msi Circuits In Ttl Logic, Synchronous And Asynchronous Counters, Shift Registers, Astable And Monostable Multivibrators, Seven Segment Displays.

The Board Is Composed Of:
– 4 Jk/Ms Flip-Flop
– 2 D Flip-Flop
– A Bcd Synchronous Counter
– A Binary 4-Bit Synchronous Counter
– A Bcd Asynchronous Counter
– A Binary 4-Bit Asynchronous Counter
– 2 Monostable Multivibrators
– A Shift Register, 8-Bit Si/So
– 2 Bcd 7-Segment Decoders
– 2 7-Segment Displays
– 2 Bcd Rotating Switches
– 8 Capacitors
– 2 Linear Potentiometers
– Power Supply: 5Vdc, 5W
