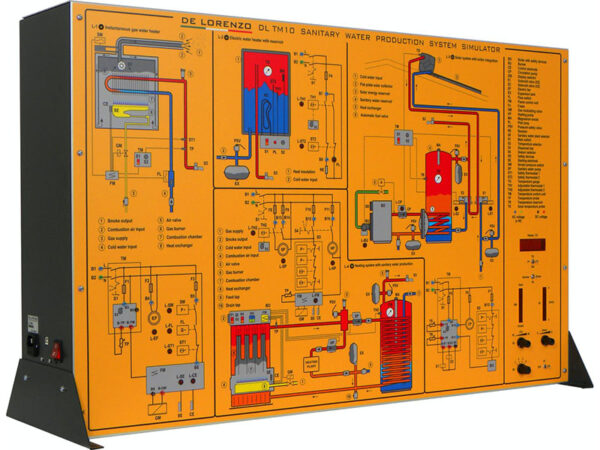

Sanitary Water Production System Simulator

Model No. DL TM10

The simulator allows the study, the performing of experiments and the troubleshooting for the following systems:
– Instantaneous geyser;
– Store electric water heater;
– Solar system for sanitary water production with boiler integration;
– Central system for heating and sanitary water production

These systems are reproduced on the panel, through a color representation that allows a complete analysis of the fluid circuit, of its components and of the electrical/electronic circuit for control and regulation.

TECHNICAL DESCRIPTION
The solar system for sanitary water production with boiler integration is composed of the following main elements:
– Solar panel with natural circulation, with tank for sanitary water storage
– Boiler and relevant gas burner
– Safety and regulation devices for the boiler
– Boiler for sanitary water storage
– Boiler pump
– Sanitary water regulation thermostat
– Probe for boiler temperature and boiler sanitary water thermometer
– Probe for stored sanitary water temperature through solar panels
– Safety valve
– Electrovalve for control of the heating through a solar panel or through the solar panel with boiler integration
– Sanitary water with heating through the boiler

The central system for heating and sanitary water production is composed of the following main elements:
– Gas boiler
– Safety and regulation devices for the boiler
– Flame control device
– Modulating valve for gas capacity
– Heating circulation pump
– Expansion tank
– Air exhaust valve
– Boiler for sanitary water storage
– Boiler pump
– Sanitary water regulation thermostat
– Probe for boiler temperature and boiler sanitary water thermometer
– Safety valves
– Magnesium anode
