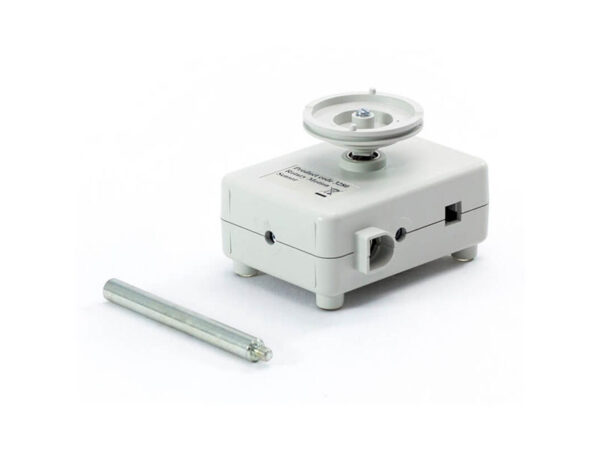

Rotary Motion Sensor

Model No. 3280

A versatile sensor for measuring circular motion and oscillations. Combined with EasySense software it makes an ideal demonstration to explain wave phases in SHM and why circular motion can be described as a sine waveform.

Specification
– Material: 8
– Angular Position: 0 to 360 degrees (resolution 0.1 degree)
– Angular Velocity (revs): ±4 revs/s (resolution 0.01 rev)
– Angular Velocity (rads): ±40 radians/s (resolution 0.1 rad)
– Distance using 11 mm pulley: ±200 mm (resolution 0.1 mm)
– Distance using 31 mm pulley: ±2000 mm (resolution 1 mm)
– Distance using 49 mm pulley: ±2000 mm (resolution 1 mm)
– Pendulum: ±20 degrees (resolution 0.1 degree)
– Linear distance with linear rack: ±200 mm (resolution 0.1 mm)

What’s in the box
– 1x Rotary Motion Sensor
– 1x Steel rod (80 mm long x 10 mm diameter with a M6 thread)

For more details download catalogue from here
