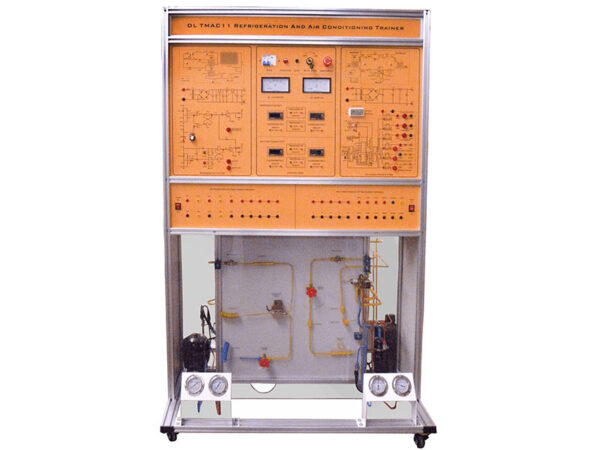

Refrigeration Trainer

Model No. DL TMAC11

It consists of an air conditioning system, a refrigeration system, a control panel, a unit for detecting the pressure, a connection area, etc.

The air conditioning system is composed of:
– Internal and external heat exchanger, compressor, 4 way valves, control valves, etc.

The refrigeration system is composed of:
– Refrigerator compressor, condenser, evaporator, regulator, thermostat, 2 way 3 position filter valve, etc.

The control panel is composed of:
– Single phase ac power supply.
– AC voltmeter, range: 0 ~ 250V. AC ammeter, range: 0 ~ 10A.
– Two digit thermometer.
– Switch to control the main supply current.
– Block diagram of the air conditioning system and of the refrigeration system.
– Test points. Protection against overheating or overload of the compressor.

The detection of the pressure consists of:
Four vacuum manometers used to supervise the pressures in the air conditioning and refrigeration systems. Range: – 0.1 ~ 1.8MPa and   0.1 ~ 3.8MPa.

Connection area:
– For the control of the electric circuit of the air conditioning and refrigeration systems, for the training of the students.

SPECIFICATIONS
– Power supply: single-phase from mains.
– Ambient temperature: -10 °C  40 °C, relative humidity <85%, altitude < 4000 m.
– Power: <1.5kVA.
– Protection against overvoltage
