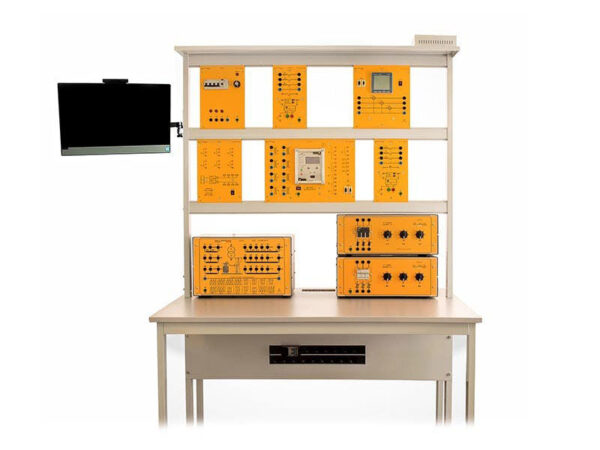

Protection Realys

Model No. DL GTU103.2-S

Dedicated protection relays are used for monitoring each section of the power system (generators, transformers and transmission lines), to recognize a damaged system component for a specific fault event
(under/over voltage, under/over frequency, over-current, earth-fault, reverse power, etc.), and to disconnect it quickly and reliably, protecting humans and the other healthy parts of the system while maintaining the power distribution.

Experiments:
Paramenter configuration, fault simulation, relay response measurement and oscillograph recording for the following protections:
– Definite time overcurrent protection
– Inverse time overcurrent protection
– Earth-fault protection
– Undervoltage protection
– Overvoltage protection
– Unbalanced load protection
– Directional power protection

For more details download catalogue from here
